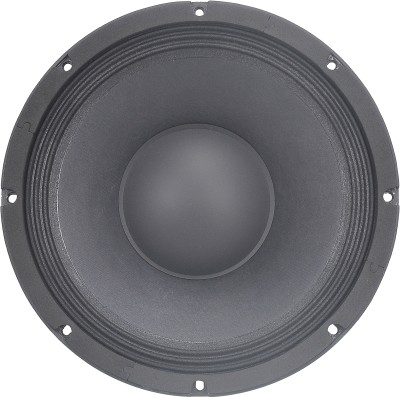

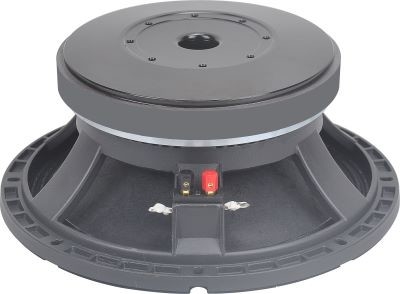

94.5dB High Sensitivity 8"MID-BASS PM8G1 400watts RMS 3"VC die cast aluminum

94.5dB High Sensitivity 8"MID-BASS PM8G1 400watts RMS 3"VC  die cast aluminum
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Payment & Shipping Terms
Product Description
PM8G1

Spec :
– 8”
– 400 Watts RMS
– 3” voice coil
– impedance: 8 ohms
– freq. response: 70Hz-4.5KHz
– Sensitivity: 94.5dB

Available with 8”

The series uses FERRITE magnetic, FEM optimized motor and suspensions, edgewound CCAW voice coil. Single roll surround and resonance.

Heavy duty basket design insures very high displacement and linear response while maintaining excellent control.

The cone has been treated with a conformal coating designed to provide additional mechanical damping and moisture resistance. The transducer chassis is a die cast aluminum design that insures a very high degree of structural integrity.
