Product Description

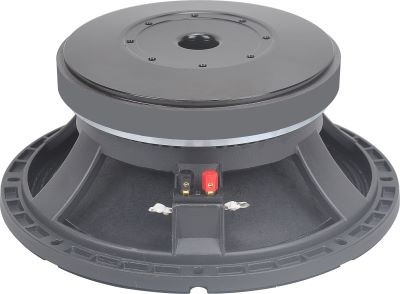

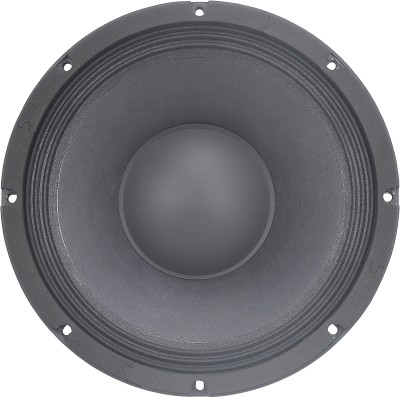

PM12G1

Spec:
– 12”
– 1000 Watts RMS
– 4” voice coil
– impedance: 8 ohms
– freq. response: 53Hz-3.5KHz
– Sensitivity: 96.7dB

Available with  12″

The series uses FERRITE magnetic, FEM optimized motor and suspensions, edgewound CCAW voice coil. Single roll surround and resonance.

Heavy duty basket design insures very high displacement and linear response while maintaining excellent control.

The cone has been treated with a conformal coating designed to provide additional mechanical damping and moisture resistance. The transducer chassis is a die cast aluminum design that insures a very high degree of structural integrity.
