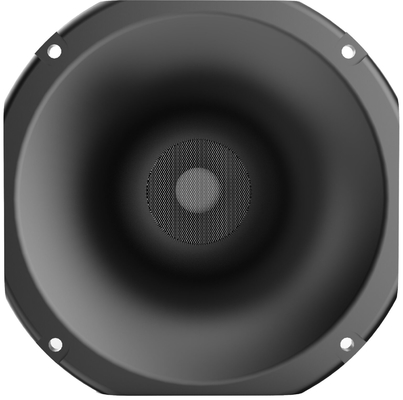

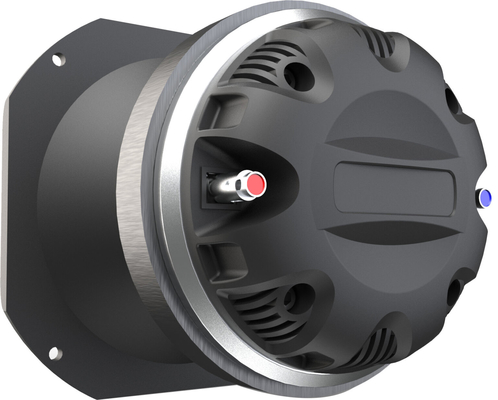

2"voice coil PDH21 400watts RMS 8ohm 101dB ferrite driver with aluminium horn

2"voice coil PDH21 400watts RMS 8ohm 101dB ferrite driver with aluminium horn

Detailed Product Description

PDH21

Spec:
– 400 Wattas RMS
– 2” voice coil
– impedance: 8 ohms
– freq. response: 700Hz-17KHz
– Sensitivity: 106dB

These FERRITE PDH series high frequency compression driver has been designed for use in high quality audio system. The titanium diaphragm has been developed to assure unmatched transient response.

Phase plug with its short openings and high flare rate, assures low distortion with excellent mid-high frequency reproduction. Powerful ceramic magnet assembly has been designed to obtain high Gauss in the gap within a compact ferrite motor structure.

FEM simulated high grade ceramic motor, titanium diaphragm with CCAR voice coil, short openings and high flare rate phase plug, high efficiency and low distortion aluminum horn.
