6.5"midrange neodymium speaker MG6, impedence:4 ohms,50W,1.5''CCAW voice coil, freq. response: 148-10kHz,Sensitivity: 96.3dB, Paper cone, Magnet: Neo, Size(mm): 165*81, Weight: 1.33kg
Detailed Product Description

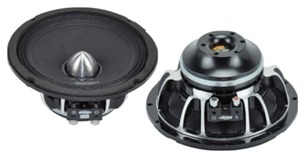

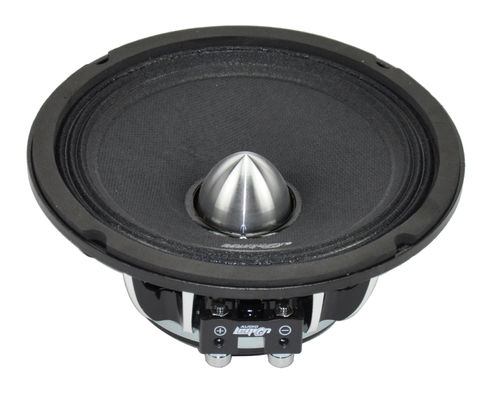

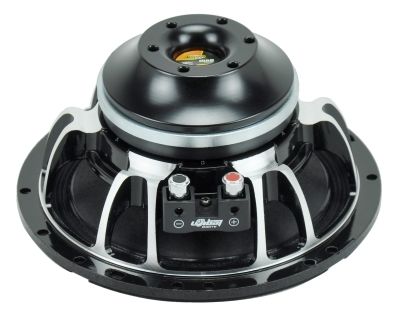

MG6/MG8 neodymium speaker
Available with 6”, 8”
Due to the external Neodymium magnet assembly ensures that high flow concentration, low power compression and heat exchange. Die-Cast Aluminum basket. The exclusive design of the MG-S offers improved linear travel and control, to accurately reproduce low frequencies.
The 1.5”/2” interior aluminum mobile coil uses Sandwich Voice (ISV) interleaved coil technology, composed of a high-strength fiberglass former that is used to transport windings both on the external and internal surfaces to achieve a balanced mass coil.
This results in an extremely linear motor assembly and together with the highly advanced design of the magnetic structure, provides a high force or BL factor.
MG6
Spec :
– 6.5”
– 50 Watts RMS
– 1.5” voice coil
– impedance: 4 ohms
– freq. response: 148Hz-10KHz
– Sensitivity: 96.3dB
